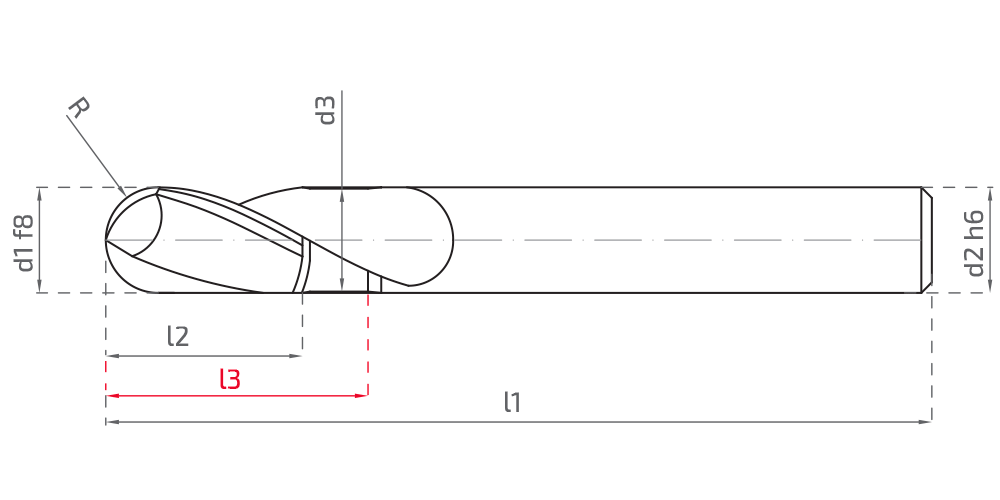

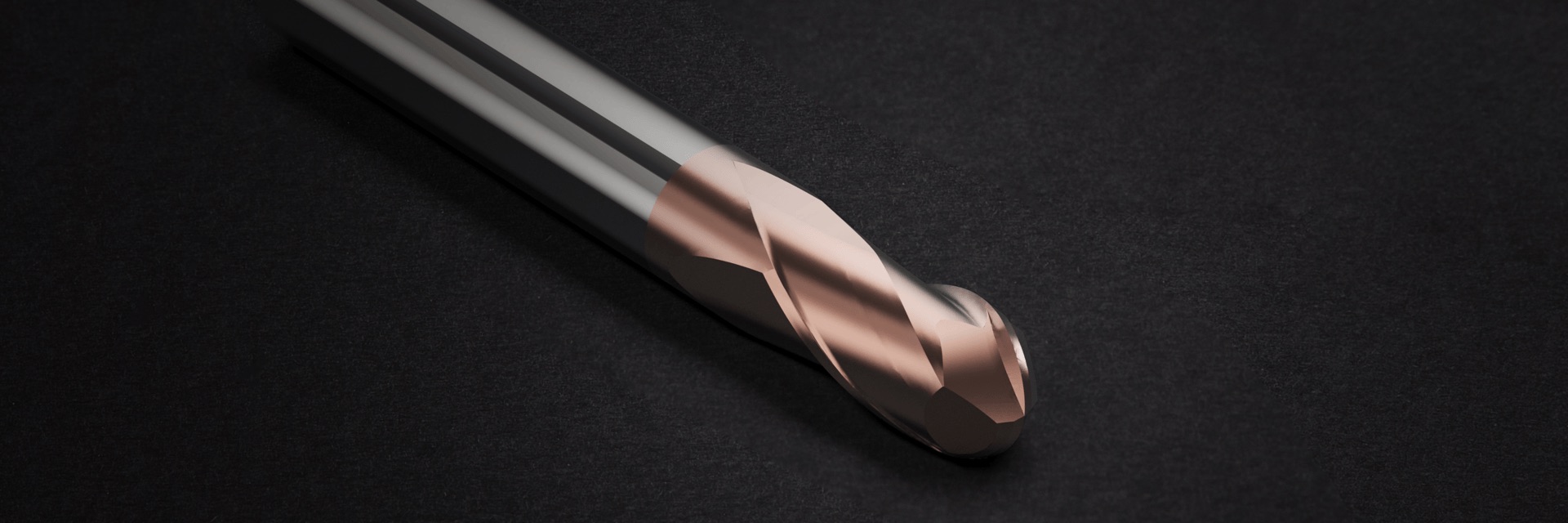

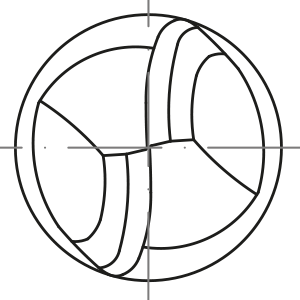

Recommended Acceptable Not Recommended| Stock | Kod | d1f8 | d2h6 | l1 | l2 | Z |
|---|---|---|---|---|---|---|
| 203201050 PLUS | 1 | 4 | 50 | 2 | 2 | |
| 203202050 PLUS | 2 | 4 | 50 | 4 | 2 | |
| 203203058 PLUS | 3 | 6 | 58 | 6 | 2 | |
| 203204058 PLUS | 4 | 6 | 58 | 9 | 2 | |
| 203205058 PLUS | 5 | 6 | 58 | 10 | 2 | |
| 203206058 PLUS | 6 | 6 | 58 | 12 | 2 | |
| 203208064 PLUS | 8 | 8 | 64 | 15 | 2 | |
| 203210073 PLUS | 10 | 10 | 73 | 20 | 2 | |
| 203212082 PLUS | 12 | 12 | 82 | 22 | 2 |
| Ø | ae=0.25Ø | ae=0.20Ø | ae=0.15Ø | ae=0.10Ø |
|---|---|---|---|---|
| 1 | 0.02 | 0.025 | 0.03 | 0.033 |
| 2 | 0.02 | 0.025 | 0.03 | 0.033 |
| 3 | 0.026 | 0.031 | 0.037 | 0.04 |
| 4 | 0.032 | 0.037 | 0.041 | 0.045 |
| 5 | 0.032 | 0.037 | 0.042 | 0.046 |
| 6 | 0.041 | 0.046 | 0.052 | 0.057 |
| 8 | 0.047 | 0.052 | 0.061 | 0.066 |
| 10 | 0.052 | 0.057 | 0.066 | 0.072 |
| 12 | 0.051 | 0.058 | 0.072 | 0.079 |
| Material | Slotting | Finish Milling | |
|---|---|---|---|
|
|
|
||
| ap=0.25 - 0.10Ø / ae=0.25 - 0.10Ø | ap=0.10Ø / ae=0.10Ø | ||
| Vc (m/min) | Vc (m/min) | ||
| Unalloyed Steel | 120-140 | 230-260 | |
| Manufacturing Steel | 120-140 | 200-230 | |
| Breeding Steel | 120-140 | 230-260 | |
| Cold Work Tool Steel | 90-110 | 200-230 | |
| Hot Work Tool Steel | 90-110 | 200-230 | |
| AISI 304-416-420 | 90-120 | 180-210 | |
| AISI 316-440 | 80-110 | 170-20 0 | |
| 17-4 PH 15-5 PH | 80-110 | 120-150 | |
| Chrome Cobalt Alloy | 80-110 | 110-140 | |
| Duplex F51 | 80-110 | 110-140 | |
| Super Duplex F55 | 80-110 | 110-140 | |
| Hardened Steel 54 HRC | 30-60 | 50-70 | |
